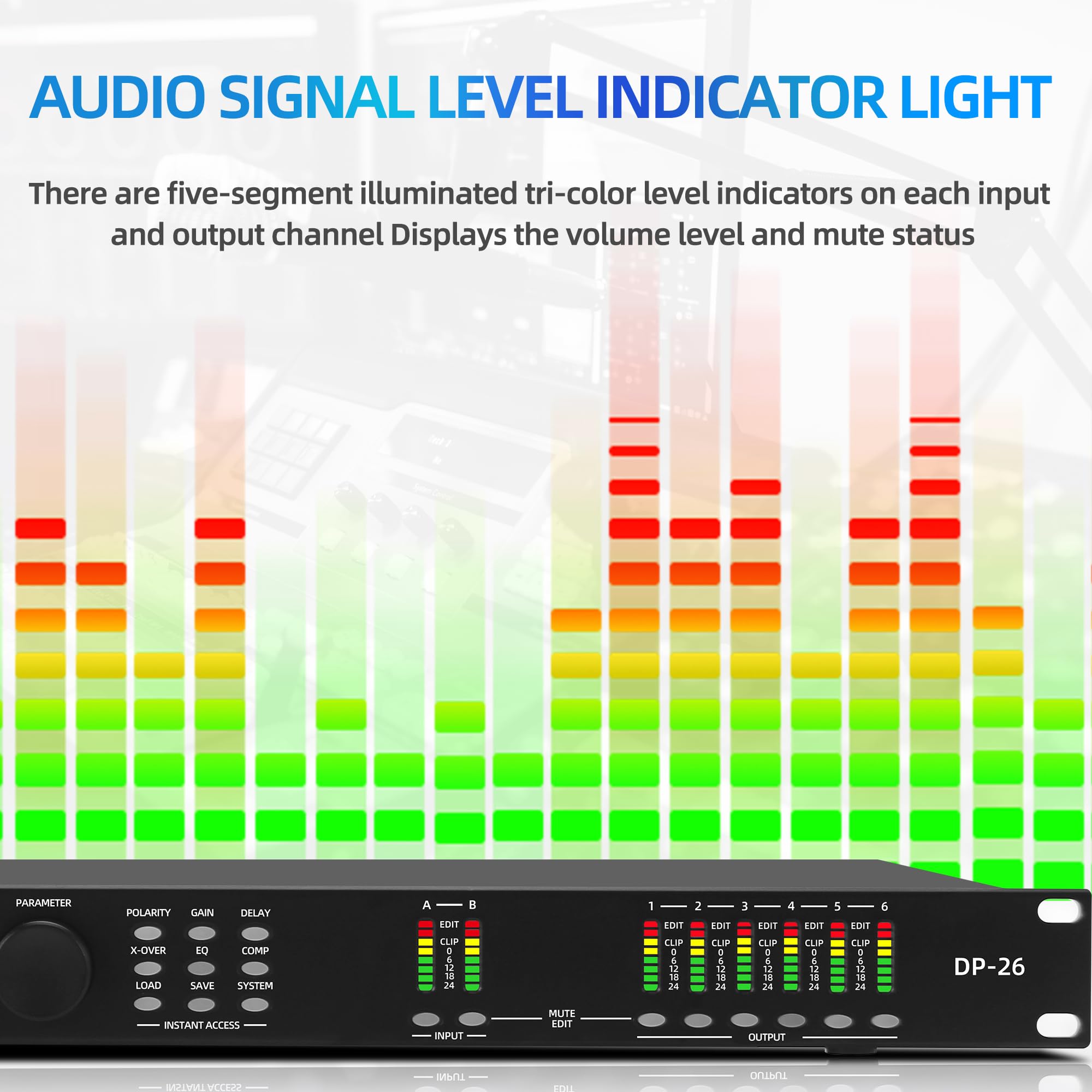

The DP-26 is a 1U rack-mountable, high-performance audio processor that combines the functions of multiple conventional devices into one unit, including a crossover, equalizer, limiter, delayer, and filter. It allows for easy configuration using the panel’s function keys and coding wheel or through a computer with dedicated PC control software, making operation convenient, intuitive, and efficient. The machine provides USB and RS485 interface can be connected to the computer, through the RS485 interface can be connected to a maximum of 250 machines, and ad hoc RS232 serial port, convenient for different occasions when the application needs, and more than 1500 meters away from the computer to control. Stand-alone or PC control software can store 12 kinds of user programs. 96KHz sampling frequency, 32-bit DSP processor, 24-bit A/D and D/A conversion, each input has 31 segments of GEQ + 10 segments of PEQ, the output of 10 segments of PEQ; 2x24 LCD display function setup, 8 segments of the LED display input and output of the accurate digital level meter, mute and edit the status. Each output channel can be individually set high-pass filter (HPF) and low-pass filter LLPF), high / low-pass filter parameters can be independently adjusted to achieve asymmetrical crossover function; variable high / low-pass filter slope can be set, which (Bessel), (Butterworth) can be set to 12dB, 18dB, 24dB per octave, ( Linkwitz-Rilev) can be set to 12dB, 24dB, 36dB, 48dB per octave. Each input and output has a delay and phase control and mute settings, delay up to 1000ms, less than 10ms, step distance is 21us: more than 10ms, step distance is 1ms. Delay units are available in milliseconds (ms) , meters (m) , and feet (ft). › See more product details
