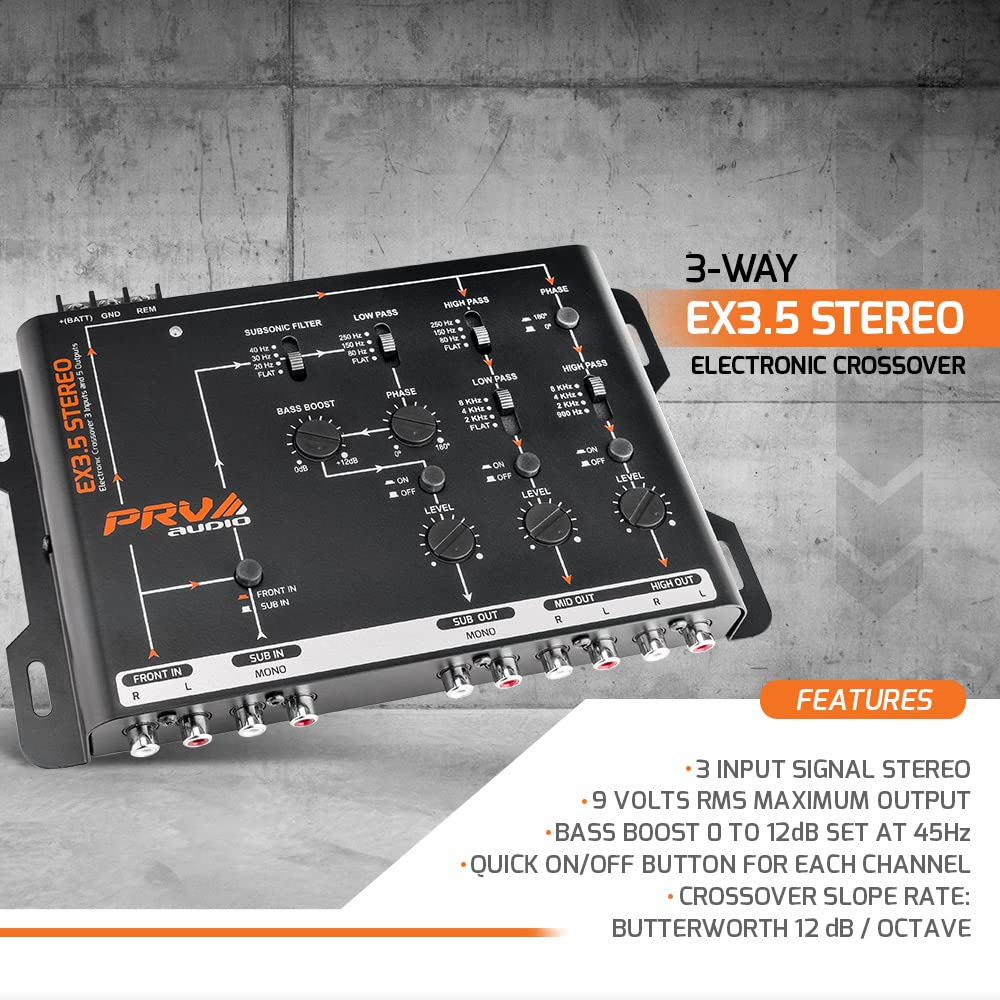

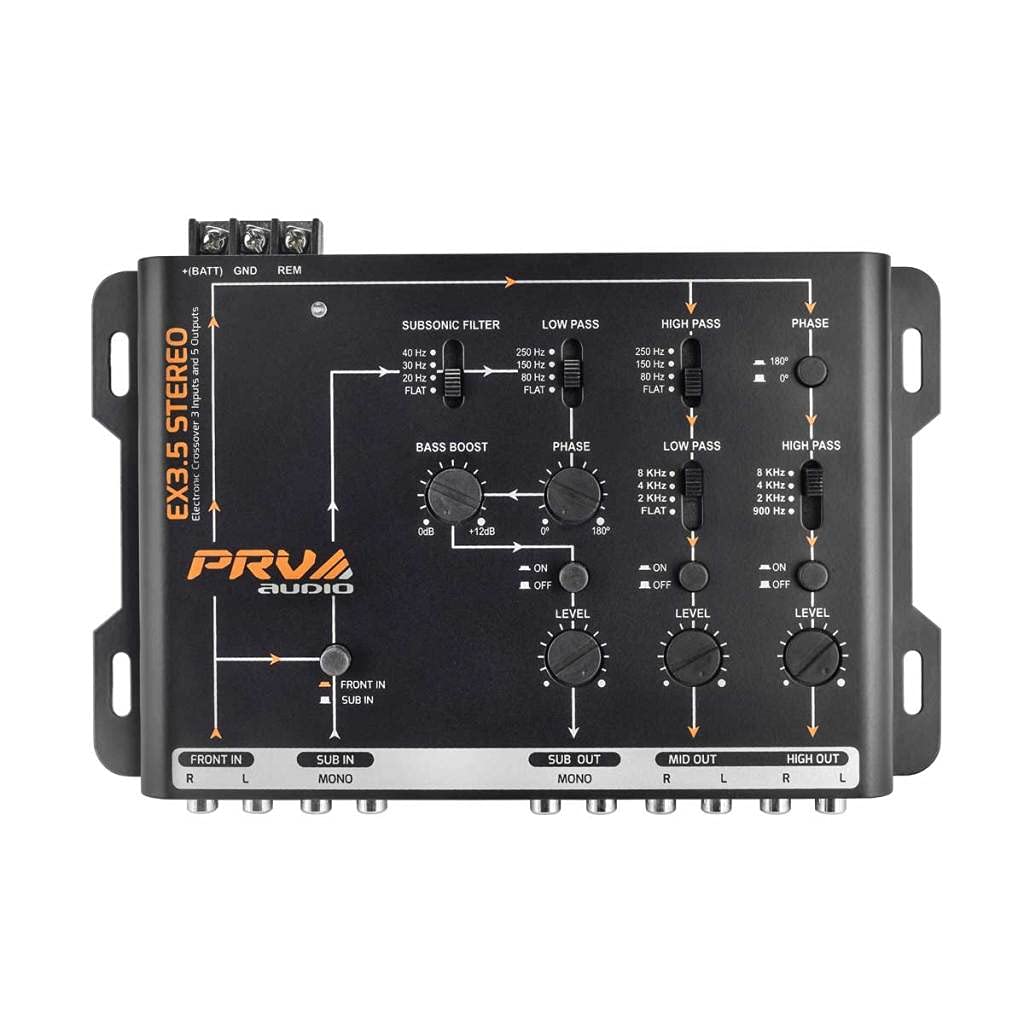

Bringing innovation and technology to the automotive sound market, PRV Audio launches the EX3.5 STEREO electronic crossover, giving you the power to customize your sound with a frequency of filter adjustments. Featuring 3-way adjustable HIGH PASS and LOW PASS filters and also output level control on each channel, plus an adjustable BASS-BOOST option on the Sub Out channel. Enhancing Your Audio System! Highlights: 2/4 RCA Input Signal Options9 Volts RMS maximum outputBass Boost 0 to 12dB set at 45HzQuick On/Off button for each channelCrossover slope rate: Butterworth 12 dB/Octave Input and Output Functions: 2/4 RCA inputs for 2 Channels – 1 Stereo and 1 Mono6 RCA outputs for 3 Channels – 2 Stereo and 1 Mono HIGH OUT channel: This Stereo output channel take signal from the FRONT IN stereo inputs – Selectable HIGH PASS filter options: 8000Hz / 4000Hz / 2000Hz / 900Hz Recommended application: High Frequency Compression Drivers and Super Tweeters. MID OUT channel: This Stereo output channel take signal from the FRONT IN stereo inputs – Selectable HIGH PASS filter options: 250Hz / 150Hz / 80Hz / FLAT ( no filter ) – Selectable LOW PASS filter options: 8000Hz / 4000Hz / 2000Hz / FLAT ( no filter ) Recommended application: Woofer, Mid Bass and Mid Range Speakers. SUB OUT channel: This mono output channel take signal from the FRONT IN or SUB IN input. – Selectable SUBSONIC filter options: 40Hz / 30Hz / 20Hz / FLAT ( no filter ) – Selectable LOW PASS filter options: 250Hz / 150Hz / 80Hz / FLAT ( no filter ) – BASS BOOST gain + 12dB at center frequency of 45Hz and Phase Control Recommended application: Woofer and Subwoofers. Specifications EX3.5 Stereo Electronic Crossover High Out Channel High Pass – 8000Hz / 4000Hz / 2000Hz / 900Hz (12dB/8a) Mid Out Channel High Pass – 250Hz / 150Hz / 80Hz / FLAT (12dB/8a) Low Pass – 8000Hz / 4000Hz / 2000Hz / FLAT Sub Out Channel Low Pass – 250Hz / 150Hz / 80Hz / FLAT (12dB/8a) Bass Boost – 25Hz – 110Hz (0 – +12dB; 45Hz) Maximum Output Voltage 9V RMS Maximum Input Voltage 4V RMS Signal to Noise >90dB Input Impedance 10K Ohms Harmonic Distortion 80dB Frequency Response 20Hz-200KHz Supply Voltage 10V – 16V DC Current Consumption 200mA Impedance Output 470 Ohms Dimensions (H x W x L) 1.30″ x 9.25″ x 6.30″ Weight 1.45 Lbs EX3.5 STEREO EX4.6 PRO DSP 2.4X DSP 2.8X Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 69 4.5 out of 5 stars 283 4.6 out of 5 stars 228 4.5 out of 5 stars 451 Price $49.00$49.00 $62.00$62.00 $62.00$62.00 $99.91$99.91 Application 3-Way Electronic Crossover 4-Way Electronic Crossover Digital Signal Processor Digital Signal Processor Input Channels 2 3 2 2 Output Channels 3 4 4 8 Built-in Remote Out no data no data ✓ ✓
